[안드로이드] Custom Spinner 쉽게 만드는 방법

이번 시간에는 스피너를 내맘대로 바꿔보겠습니다.

미리 알아보자면 아이콘 넣기, 글씨색깔 바꾸기, 배경색상 바꾸기 정도 입니다.

1. 데이터 담을 클래스 만들기 (Fruit.java)

public class Fruit{

    private String name; //과일이름
    private int image; //과일 이미지


    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getImage() {
        return image;
    }

    public void setImage(int image) {
        this.image = image;
    }
}



2. Spinner 화면 만들기 (item_fruit.xml)

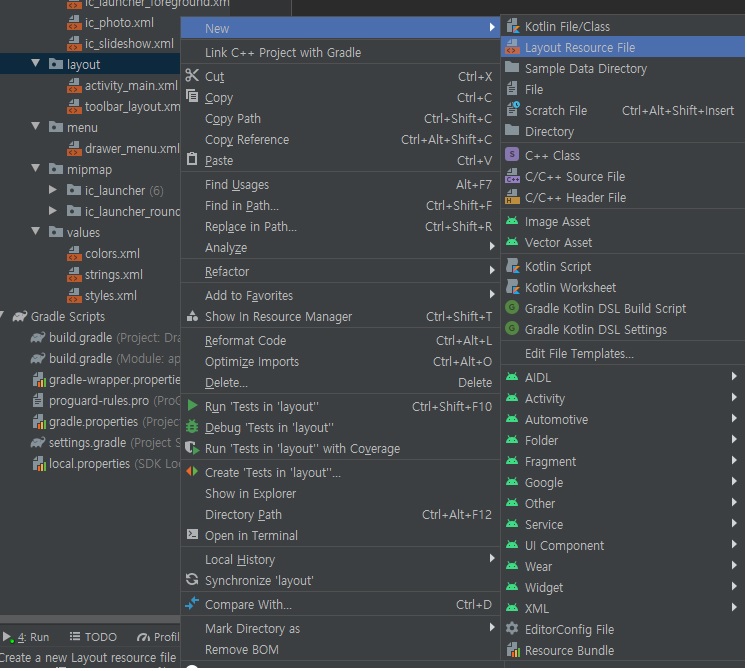

layout ->  new -> Layout Resource File



<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">

    <ImageView
        android:id="@+id/image"
        android:layout_width="32dp"
        android:layout_height="32dp"
        android:src="@drawable/avocado" />

    <TextView
        android:id="@+id/name"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"

        android:layout_marginStart="8dp"
        android:layout_toRightOf="@+id/image"
        android:text="Name"
        android:textColor="@color/red700" />
</RelativeLayout>

2-1 아이콘


0.00MB


0.00MB


0.00MB


0.00MB

ic_arrow_down.xml

0.00MB



2-2 색상

values -> colors.xml -> 아이템 추가

<color name="red700">#D32F2F</color>

<color name="teal_200">#FF03DAC5</color>



3. Spinner 와 데이터를 연결해주는 Adapter 만들기 (FruitAdapter.java)

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.TextView;

import java.util.List;

public class FruitAdapter extends BaseAdapter {

    private Context context;
    private List<Fruit> fruitList;


    public FruitAdapter(Context context, List<Fruit> fruitList) {
        this.context = context;
        this.fruitList = fruitList;
    }

    @Override
    public int getCount() {

        return fruitList !=  null ? fruitList.size() : 0;
    }

    @Override
    public Object getItem(int i) {
        return fruitList.get(i);
    }

    @Override
    public long getItemId(int i) {
        return 0;
    }

    @Override
    public View getView(int i, View view, ViewGroup viewGroup) {

        View rootView = LayoutInflater.from(context)
                .inflate(R.layout.item_fruit, viewGroup, false);

        TextView textName = rootView.findViewById(R.id.name);
        ImageView image = rootView.findViewById(R.id.image);

        textName.setText(fruitList.get(i).getName());
        image.setImageResource(fruitList.get(i).getImage());

        return rootView;
    }
}



4. Spinner Background 파일 만들기 (bg_spinner_fruit.xml)

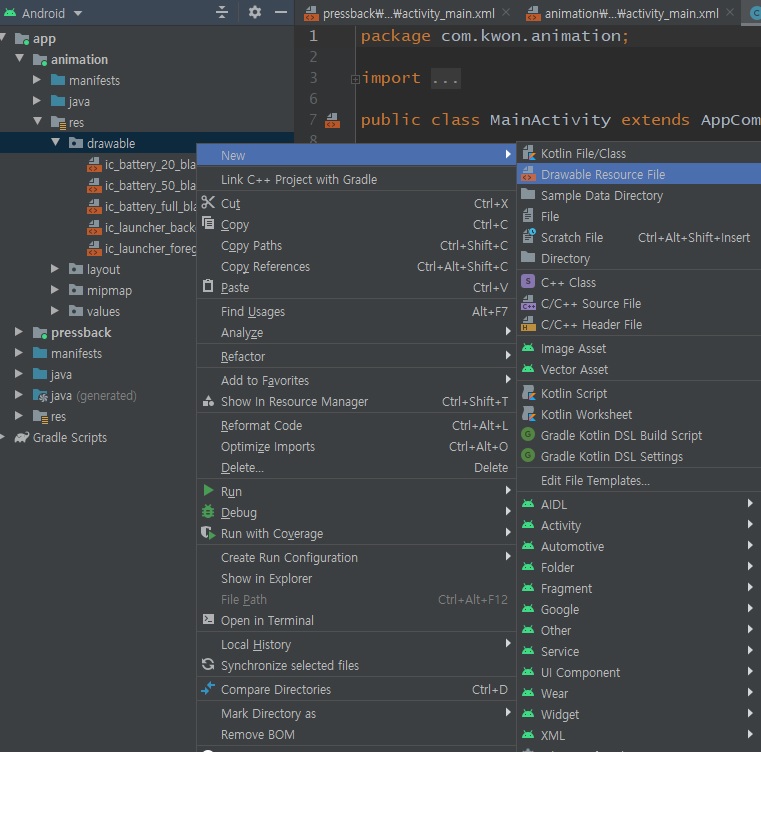

res -> drawable -> new -> Drawable Resource File

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <layer-list>
            <item>
                <shape android:shape="rectangle">
                    <solid android:color="@color/teal_200"/>
                    <padding android:right="12dp"
                        android:left="12dp"/>
                    <corners android:radius="4dp"/>
                </shape>
            </item>

            <item
                android:drawable="@drawable/ic_arrow_down"
                android:gravity="end"/>
        </layer-list>
    </item>
</selector>





5. 메인화면 구성 (activity_main.xml)

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity"
    >

    <Spinner
        android:id="@+id/spinner_fruit"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="16dp"
        android:background="@drawable/bg_spinner_fruit"
        android:dropDownVerticalOffset="40dp"
        />

</LinearLayout>



6. 메인코드 기능구현 (MainActivity.java)

import android.os.Bundle;
import android.widget.Spinner;

import androidx.appcompat.app.AppCompatActivity;
import java.util.ArrayList;
import java.util.List;


public class MainActivity extends AppCompatActivity {

    private Spinner spinner_fruit;

    private FruitAdapter adapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        List<Fruit> fruitList = new ArrayList<>();

        Fruit Avocado = new Fruit();
        Avocado.setName("Avocado");
        Avocado.setImage(R.drawable.avocado);
        fruitList.add(Avocado);

        Fruit banana = new Fruit();
        banana.setName("Banana");
        banana.setImage(R.drawable.banana);
        fruitList.add(banana);

        Fruit coconut = new Fruit();
        coconut.setName("Coconut");
        coconut.setImage(R.drawable.coconut);
        fruitList.add(coconut);

        Fruit lemon = new Fruit();
        lemon.setName("Lemon");
        lemon.setImage(R.drawable.lemon);
        fruitList.add(lemon);


        spinner_fruit = findViewById(R.id.spinner_fruit);

        adapter = new FruitAdapter(MainActivity.this, fruitList);

        spinner_fruit.setAdapter(adapter);

    }
}

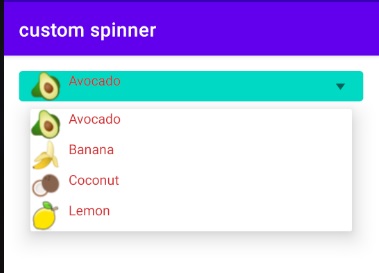

6. 실행화면
